Plan #: 4 - (HPP-16262)

  • Heated Sq Ft
    1609
  • Stories
    1
  • Beds
    3
  • Full Bath
    2
  • Garages
    2
  • Width/Depth
    72' 0"/44' 0"

Guaranteed Best Price

Plan Price: $930
What's Included?

Plan Type PDF Sets are best for fast, electronic delivery and inexpensive, local printing.
Note: Study Sets and sets labeled "Not for Construction" may not be used in construction and are meant for informational purposes only.
Foundation Type
Additional Options
Wall Framing

or call Toll Free +1 (877) 279 9111 to order

Specifications

This is a 1 story, Colonial House Style, this house plan has a 9 Foot Ceiling. The kitchen area features Eat-In Kitchen, Kitchen Island, Nook/Breakfast Area. The master bedroom suite features a His/Her Sinks, Master Bathroom, Separate Tub/Shower, Split Master Bedroom, Walk-In Closet, Walk-In Shower. Other very special features include a Great Room, Mud Room, Open Floor Plan, Split Bedroom, Storage.

Kitchen Features

Eat-In Kitchen
Kitchen Island
Nook/Breakfast Area

Bedroom Features

His/Her Sinks
Master Bathroom
Separate Tub/Shower
Split Master Bedroom
Walk-In Closet
Walk-In Shower

Special Features

Great Room
Mud Room
Open Floor Plan
Split Bedroom
Storage

Other Information

Width:
72' 0"
Depth:
44' 0"
Roof Ridge Height:
Roof Main Pitch:
8/12
Roof Construction Material:
Trussed

Ceiling Height(s)

9 Foot Ceiling
10 Foot Ceiling

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

Heated Square Footage

First Floor Sq Ft:
1629

Unheated Square Footage

Garage Sq Ft:
528
Porch Sq Ft:
478

About This Plan

These plans include the important elements to get your house built by qualified professionals. These drawings include items such as:

  • Four elevations (with the front elevation at 1/4” to 1’ scale).
  • Floor plans (1/4” to 1’ scale) for all floors.
  • Foundation plan (specifying all beams, posts, footings and other structural members).
  • Specified structural design loads with all structural members called out and sized including floor joists, ceiling joists, beams, window and garage door headers, flush beams, bearing walls, and point loads.
  • Roof plan specifying design loads and lumber sizes; unless required by truss manufacturer.
  • At least one building cross section completely through the house (at 1/4” to 1’ scale or larger). (where applicable)
  • One or more typical wall sections showing the construction of the wall along with connecting roof, foundation and floors (at 1/4” to 1’ scale or larger).
  • Fireplace detail (where applicable).
  • Detail for stairs (where applicable) with tread, riser, floor-to-floor, and rough opening dimensions.
  • Schematic of electrical layout with detail of outlets, switches, and fixtures.
  • Layout for plumbing fixtures, such as toilets, showers, and sinks.

They will not include, however, plumbing, HVAC, electrical wiring or other elements done by local contractors to meet local code. They will not include professional seals, again because of local code requirements. Lastly, cabinet details may be optional by some designers since many local builder and contractors prefer to do their own.

View All Plans by this Designer

Specifications

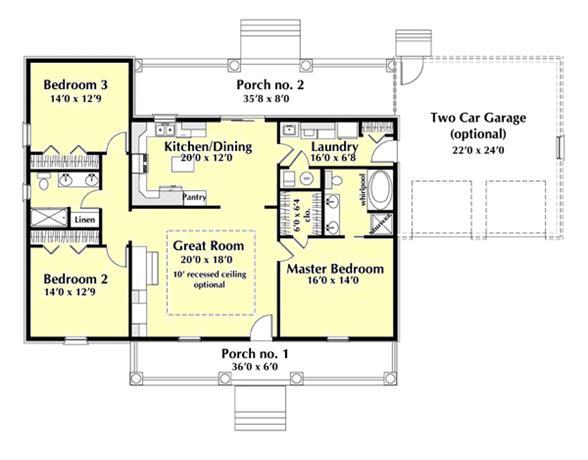

There is no such thing as wasted space where this is concerned.The entrance to this house boasts a fabulous Great Room with optional 10 ft recessed ceiling, gas fireplace and a wonderful built-in entertainment center.The Kitchen/Dining combine to utilize all of the space. The kitchen has a movable island a big pantry and lots of cabinets.The Laundry room has it all with lots of space for a washer, dryer, laundry sink and even some leftover for an upright freezer. Lets not forget cabinets to keep it all organized.The Master Bedroom is nice sized with a walk-in closet. The Master bath has dual sinks, separate shower and a whirlpool tub.Bedrooms 2 and 3 are nice sized with a large bath tucked in between them.A Two Car Garage plan is included, build it now or later.

Want to Modify this Plan?

Customize This Floorplan

Use the link below to send us an email regarding your plan modification needs.

Please include the following information with your request:

  • Name
  • Phone Number
  • When do you Plan on Building?
  • When do you need the modifications?
  • Please let us know of any interior or exterior changes you would like to make.

Request Plan Modification
